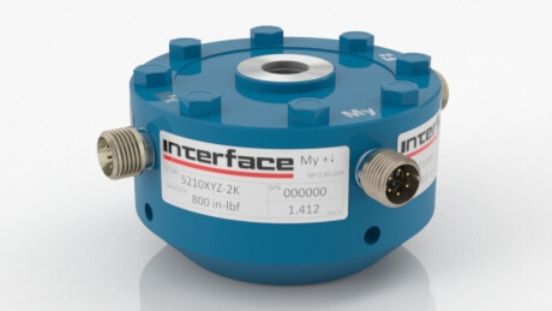

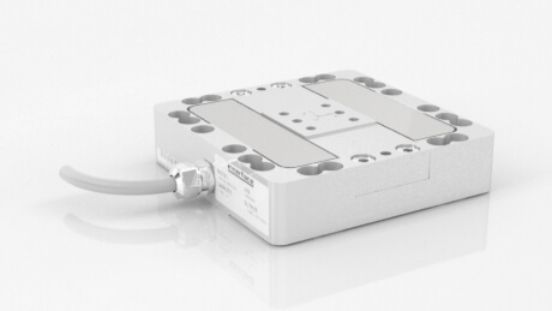

3-Axis – Fx, Fy, Fz;
independent bridges
10N to 500 kN force range
Compact size
Low crosstalk
mV/V output
Temperature compensated
Download – Data Sheet
Interface is the trusted world leader in force measurement for half a century. Interface specialises in designing and manufacturing the most accurate, highest performance products available in the market today. Their load cells are complimented by highly accurate torque transducers, machine calibration systems, digital indicators, software, and force measurement system components, which they manufacture and sell throughout the world.
3-Axis – Fx, Fy, Fz;
independent bridges
10N to 500 kN force range
Compact size
Low crosstalk
mV/V output
Temperature compensated
Download – Data Sheet

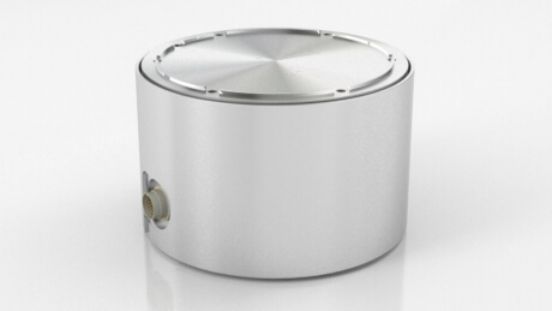

Force and Torque in all 6 axes
Compact Size
Low Crosstalk
Temperature Compensated
Download – Data Sheet
Simultaneously measurement of thrust and moment perpendicular to the thrust axis
Thrust axis functions to the same specifications as a Model 1200
Thrust stiffness and moment stiffness are both very high because of the LowProfile™ construction.
Download – Data Sheet

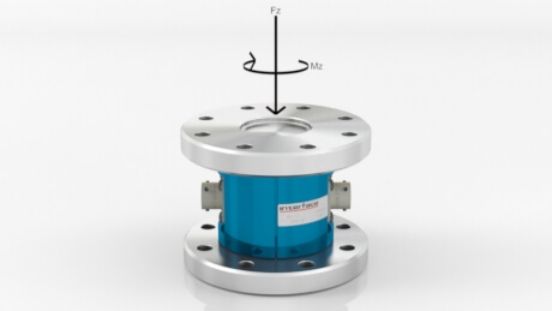

Capacities from 6K lbf / 5K lb-in to 180K lbf / 300K lb-in
Measures force and torque
Low cross talk
High stiffness
Extraneous load resistance
Download – Data Sheet

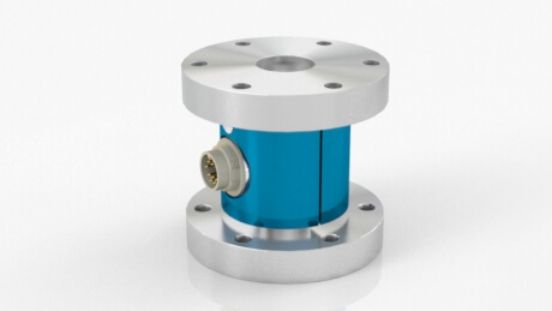

Force capacities from 0.5 kN to 20 kN Force
Torque Capacities from 5 Nm to 50 Nm Torque
Measures Force and Torque in one package
Flange Mount
Download – Data Sheet
Measures X and Y forces
Low cross talk
Linearity 0.1%
3-axis version available
Download – Data Sheet

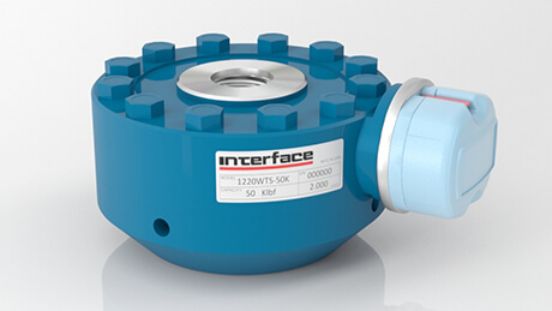

Capacities from 300 to 100K lbf (1.5 to 450 kN)
Proprietary Interface temperature compensated strain gages
Performance to 0.0425%
2.4 GHZ transceiver
Eccentric load compensated
Low deflection
Barometric compensation
Tension and compression
Compact size
Download – Data Sheet

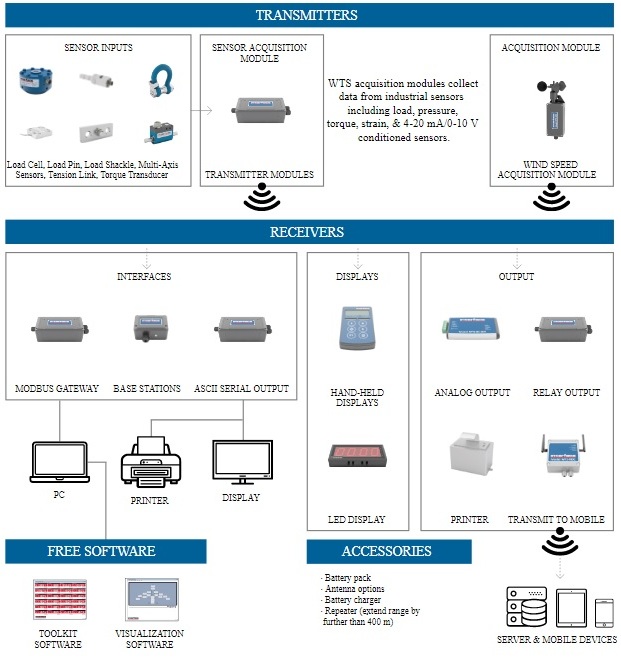

Wireless Telemetry System (WTS), Sensor Transmitters, Receivers, and Displays. High accuracy, high quality measurement is interfaced with simple yet powerful configuration and monitoring software. The WTS gives sensor manufacturers and integrators the complete flexibility to build their own sensor modules around it. The system easily replaces wired systems, reducing installation and maintenance costs.
Download – Data Sheet

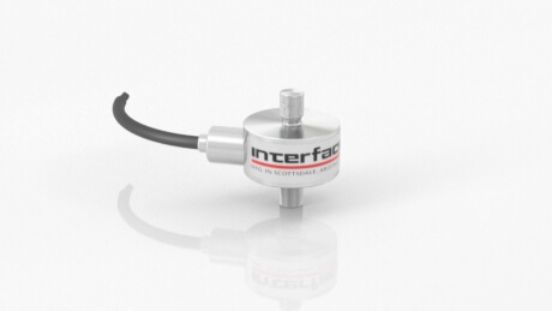

The WMC is Interface’s smallest T&C load cell.
Proprietary Interface temperature compensated strain gages
Tension and compression
Small Size
Environmentally sealed
Submersible
Download – Data Sheet
Environmentally sealed T&C load cell.
Proprietary Interface temperature compensated strain gages
Tension and compression
Small Size
Stainless Steel Construction
Submersible
Download – Data Sheet

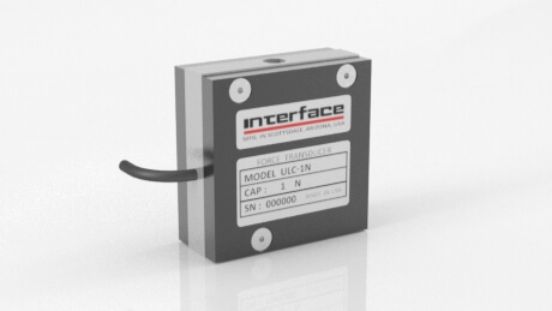

Proprietary Interface temperature compensated strain gages
Highest performance low capacity load cell in the world
Overload protected
Safe side load overload to 5X capacity
Low extraneous load sensitivity
Low temperature effect on zero (0.002%/°F)
Capacity Down to 0.5N (50 gmf) full scale
Tension and Compression
5 ft integral cable included
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
High temperature operating range -65°F to 320°F
Environmentally sealed
0.02% nonrepeatability
0.0008%/°F temp. effect on output
0.025% creep
Tension and compression
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Environmentally sealed
0.02% nonrepeatability
0.0008%/°F (0.0015%/°C) temp. effect on output
0.025% creep
Tension and compression
Download – Data Sheet
Environmentally sealed version of MB mini beam
Proprietary Interface temperature compensated strain gages
0.01% nonrepeatability
150% compression overload protection
0.0008%/°F temp. effect on output
Compact size
10 ft integral cable included
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
From 3/4″ high
Performance to 0.05%
Low extraneous load sensitivity
Tension only
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Performance to 0.05%
Small compact design
Tension and compression
Download – Data Sheet
Low-deflection / better test results
Proprietary Interface temperature compensated strain gages
High performance
0.0008%/°F temp. effect on output
Lowest creep (0.025%)
Tension and compression
5 ft integral cable included
Download – Data Sheet

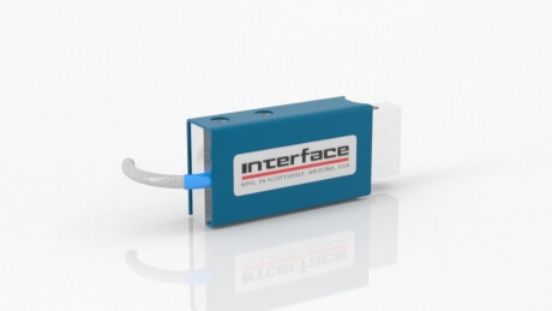

Same as MB mini beam with internal overload protection.
Proprietary Interface temperature compensated strain gages
10x overload protection
Low height – 1in max
0.0008%F temp. effect on output
5′ Integral Cable (custom lengths available upon request)
NIST Traceable Calibration Certificate
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Performance to 0.03%
Low height – 1 inch max
Eccentric load compensated
±0.0008% /?F – max temperature effect on output
Low deflection
Download – Data Sheet

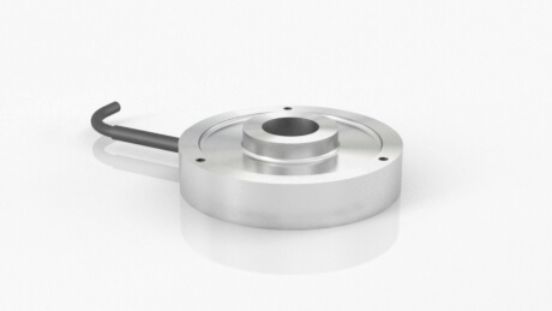

Capacities from 0.2 kN to 10 kN (45 to 2.25K lbf)
Ideal for press force control and measurement
Mounting holes for installation
Download – Data Sheet

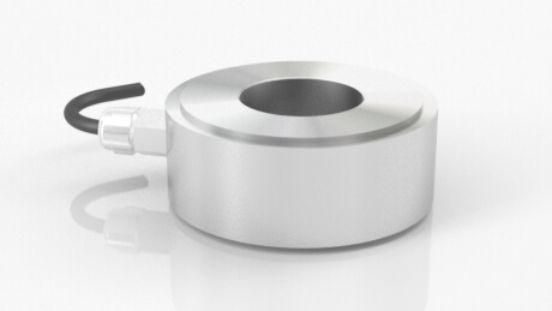

Wide selection of OD, ID, and height (a low as 0.25″) in various combinations
Stainless steel construction
Download – Data Sheet
Capacities from 25 to 50K lbf
Temperature Compensated
Integral Load Button
Small Diameter
Environmentally Sealed
Stainless Steel
Download – Data Sheet

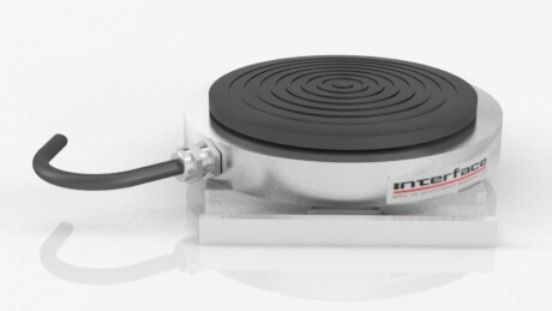

Lowest nonlinearity and hysteresis of any brake pedal load cell – < 0.05%
Ultra low height
Low sensitivity to off-axis loads
Mounts directly to pedal with included strap(s)
Interchangeable mounting plates
For use with gas, brake or clutch pedal
Storage case included
Download – Data Sheet

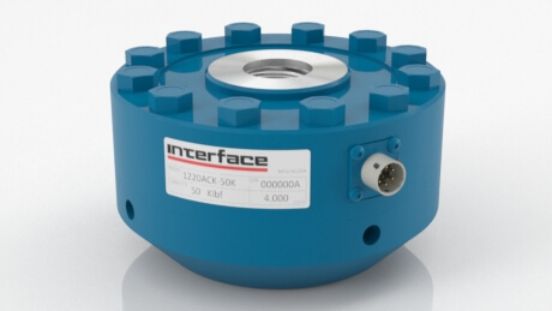

Proprietary Interface temperature compensated strain gages
Performance to 0.03%
Eccentric load compensated
Low deflection
0.0008%/°F (.0015%/°C) temp. effect on output
Barometric compensation
Shunt calibration
E74 NIST Traceable Tension and Compression Calibration (Optional)
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Performance to 0.02%
Eccentric load compensated
High Precision Base Included
Low deflection
0.0008%/°F (.0015%/°C) temp. effect on output
Barometric compensation
Shunt calibration
NIST Traceable Tension and Compression Calibration
Download – Data Sheet
Proprietary Interface temperature compensated strain gages.
Performance to .04%.
High output – to 4 mV/V.
Eccentric load compensated.
0.0008%/°F (.0015%/°C) temp. effect on output.
Low deflection
Shunt calibration.
Barometric compensation.
Tension and compression.
Compact size.
Available with or without a mounting base.
Download – Data Sheet

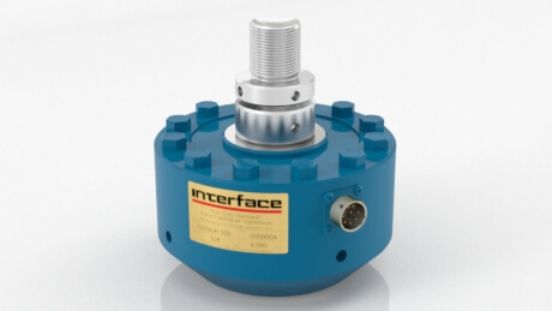

GoldStandard® Tension and compression in one unit-
0.01% creep
High output – to 4 mV/V
High precision base installed
±0.0008% /?F – max temperature effect on output
Low deflection
Shunt calibration
Barometric compensation
High precision base installed
Factory installed calibration adapter
3 run NIST traceable ASTM E74 calibration
4% lower load limit per ASTM E74
Download – Data Sheet

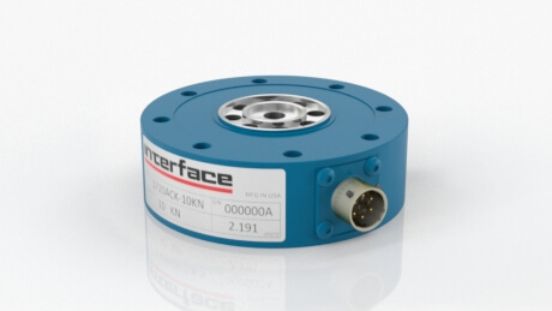

Standard flange design mounts directly to cylinders
Proprietary Interface temperature compensated strain gages
Performance to 0.05%
Eccentric load compensated
0.0008%/°F (.0015%/°C) temperature effect on output
Low deflection
Barometric compensation
Tension and compression
Download – Data Sheet

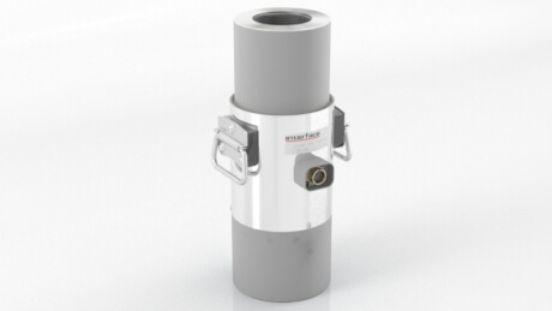

Tension and compression in one unit
0.02% creep
High Precision base installed
Tension and compression calibrated
Capable of 2% lower load limit per ASTM E74
ASTM E74 calibration standard
Internal electronic ID
Eccentric load compensated
0.0008%/°F temp. effect on output
Connector protector standard
Handcrafted excellence for the most demanding calibration requirements
Download – Data Sheet

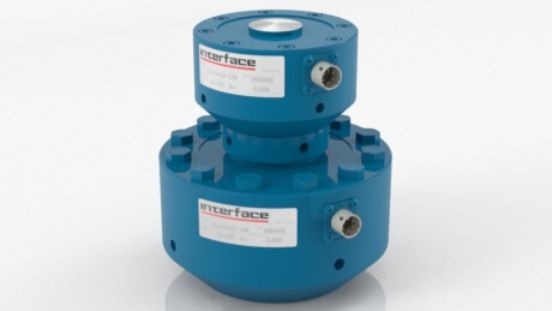

Dual range allows for accurate measurements throughout test range
4x to 5x overload protection on lower capacity load cell
Proprietary Interface temperature compensated gages
High output for both ranges: up to 4 mV/V
Eccentric load and moment compensated
Shunt calibration
Low deflection
Download – Data Sheet
Capacities from 100K – 200K lbf (445kN – 889kN)
Quadruple the gages of standard column cell
Lightweight
Compact
E74 calibration
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Stainless steel construction
Hermetically sealed
Tension and compression
Compact size
Counter-bored mounting holes
Lowest nonlinearity and hysteresis of any brake pedal load cell – < 0.05%
Ultra low height
Low sensitivity to off-axis loads
Mounts directly to pedal with included strap(s)
Interchangeable mounting plates
For use with gas, brake or clutch pedal
Storage case included

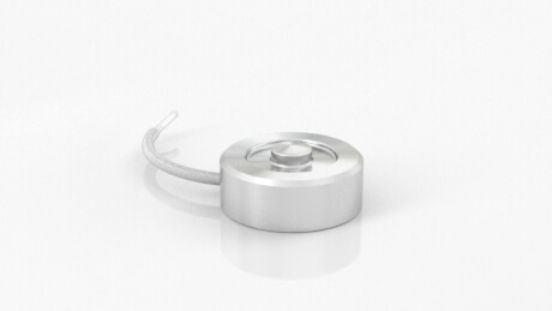

Capacities from 25 to 50K lbf
Temperature Compensated
Integral Load Button
Small Diameter
Environmentally Sealed
Stainless Steel
Download – Data Sheet
Capacities from 0.01 kN to 100 kN (2.25 lbf to 22.5K lbf)
Overload protected
Temperature compensated
Small diameter
Environmentally sealed
Stainless steel
Download – Data Sheet

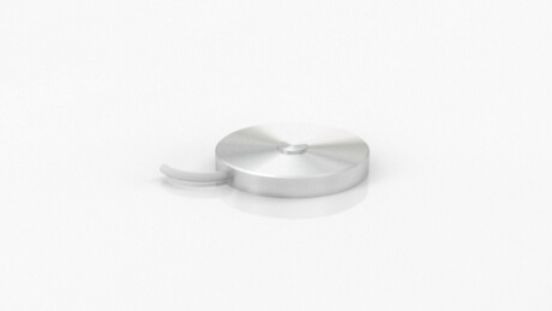

Temperature compensated
Integral Load button
Small diameter
From 0.12″ height
Download – Data Sheet
Wide selection of OD, ID, and height (a low as 0.25″) in various combinations
Stainless steel construction
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Performance to 0.03%
Low height – 1 inch max
Eccentric load compensated
±0.0008% /?F – max temperature effect on output
Low deflection
Download – Data Sheet
Same as MB mini beam with internal overload protection.
Proprietary Interface temperature compensated strain gages
10x overload protection
Low height – 1in max
0.0008%F temp. effect on output
5′ Integral Cable (custom lengths available upon request)
NIST Traceable Calibration Certificate
Download – Data Sheet
Low-deflection / better test results
Proprietary Interface temperature compensated strain gages
High performance
0.0008%/°F temp. effect on output
Lowest creep (0.025%)
Tension and compression
5 ft integral cable included
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Performance to 0.05%
Small compact design
Tension and compression
Download – Data Sheet
Environmentally sealed version of MB mini beam
Proprietary Interface temperature compensated strain gages
0.01% nonrepeatability
150% compression overload protection
0.0008%/°F temp. effect on output
Compact size
10 ft integral cable included
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Environmentally sealed
0.02% nonrepeatability
0.0008%/°F (0.0015%/°C) temp. effect on output
0.025% creep
Tension and compression
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
High temperature operating range -65°F to 320°F
Environmentally sealed
0.02% nonrepeatability
0.0008%/°F temp. effect on output
0.025% creep
Tension and compression
Download – Data Sheet

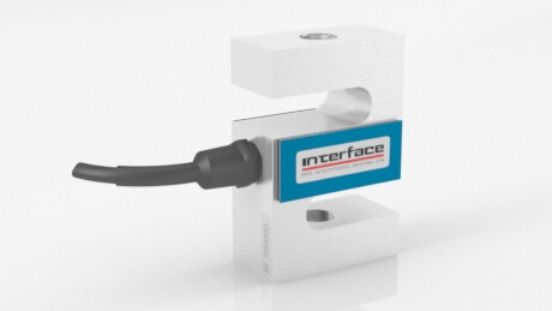

Fatigue-rated: 1×107 fully reversed cycles
Proprietary Interface temperature compensated strain gages
Capacities 25 to 2.5K lbf
Environmentally sealed
0.02% nonrepeatability
Near zero temp. effect on output – 0.0008%/°F (0.0015%/°C)
Very low creep – 0.025%
Tension
Download – Data Sheet
Proprietary Interface temperature compensated strain gages
Highest performance low capacity load cell in the world
Overload protected
Safe side load overload to 5X capacity
Low extraneous load sensitivity
Low temperature effect on zero (0.002%/°F)
Capacity Down to 0.5N (50 gmf) full scale
Tension and Compression
5 ft integral cable included
Download – Data Sheet
Environmentally sealed T&C load cell.
Proprietary Interface temperature compensated strain gages
Tension and compression
Small Size
Stainless Steel Construction
Submersible
Download – Data Sheet
